Wireguard


The WireGuard application is a modern VPN solution (as compared to SSL VPN) and it utilizes inbuilt state-of-the-art cryptography.

Crystal Eye XDR offers the capability to implement site-to-site VPN allowing users to connect to resources placed in multiple sites. The app can be switched to both split-tunnel mode and full tunnel mode to create a secure tunnel between multiple sites.

The WireGuard application also allows CE XDR administrators to configure VPN servers and create WireGuard VPN users. This setup essentially creates a tunnel between the user's device and the Crystal Eye XDR network offering VPN services for remote users. This configuration is widely used to connect remote workers with the CE XDR network.

The WireGuard application ensures seamless security helping Crystal Eye XDR users to comply with ISO 27001 Control A.13.1.2 Security of Network Services and reduce the risk derived from insecure networks.

Advantages of using the WireGuard application:

  1. Control over service levels through quick and reliable connection process.
  2. Best download speeds that you can get over a VPN network.
  3. The app uses the WireGuard protocol known to be cryptographically sound.
  4. Ability to run on both full tunnel and split-tunnel mode.
  5. Simple app user interface.


The WireGuard application is not available by default. It can be installed from Marketplace in the left-hand navigation panel.

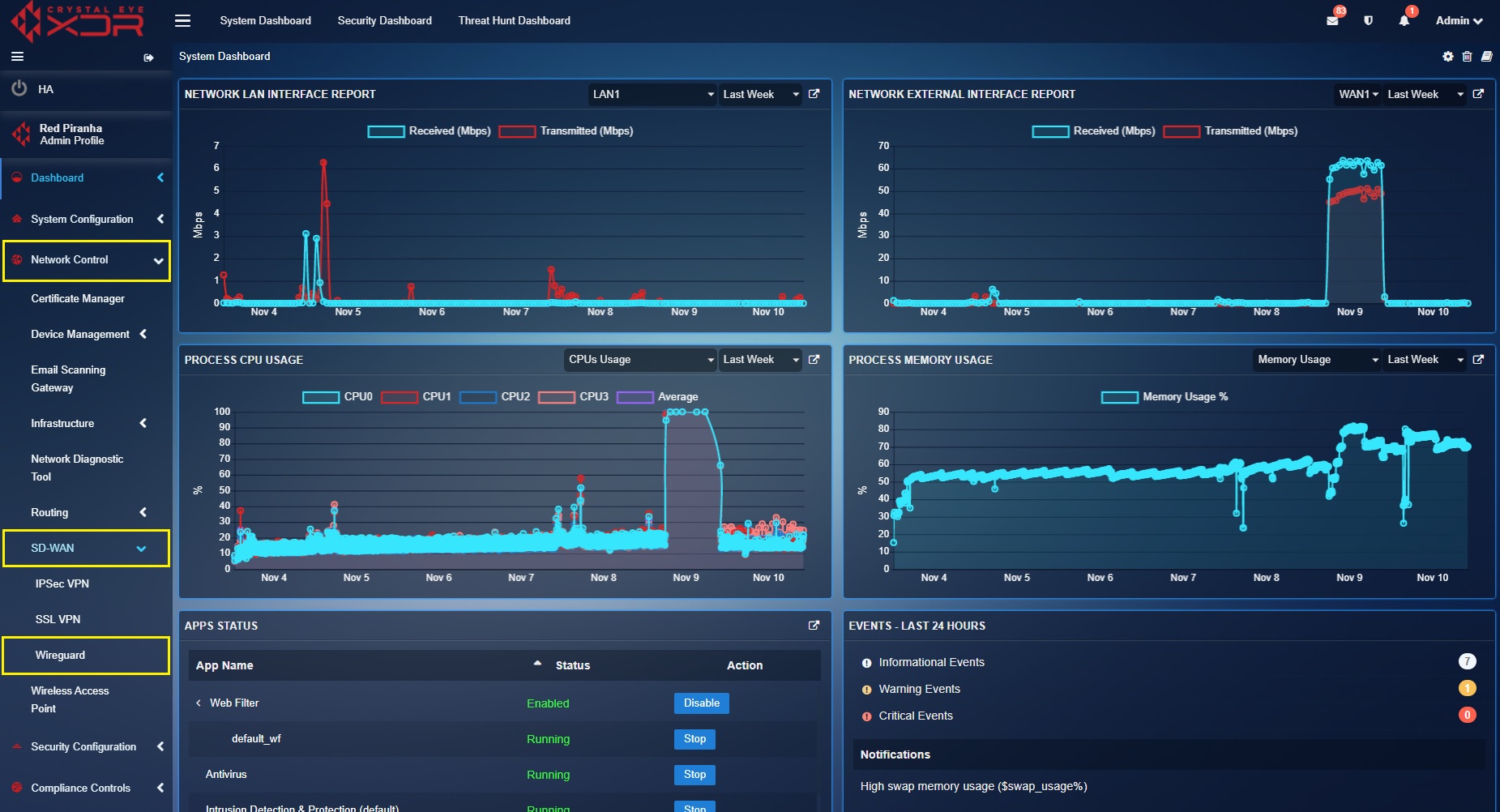

Go to Network Control > SD-WAN > WireGuardcrystal-eye-xdr-navigation-wireguard


The Crystal Eye XDR can be used to spin up a WireGuard mesh network to create a secure and fast connection between multiple sites.

WireGuard mesh network can be configured to implement access controls across multiple sites so that only specific devices falling within a particular network subnet get authorized access to specific servers.

Implementing access controls across multiple sites by configuring a WireGuard mesh network improves the ability of an organization to control access to IT resources and applications.

Let’s learn how to configure a WireGuard mesh network with the help of the following scenario.

In the scenario below, we will configure a WireGuard mesh network to connect specific LAN network subnets of Site A, Site B and Site C. Each site has a Crystal Eye XDR configured as a gateway.

crystal-eye-xdr-wireguard-mesh-vpn


The tunnel configuration in Site A, Site B and Site C must be done in the respective Crystal Eye XDRs.

The following screenshot shows the WireGuard tunnel configuration of Site A Crystal Eye XDR:

In the ‘Site A’ Crystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Tunnel Tab > click the ‘Add+’ button and enter the tunnel configuration entries shown in the screenshot below > click the Add button crystal-eye-xdr-wireguard-mesh-vpn1

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site A’ details.

b. Enter the ‘Site AWireGuard interface IP address i.e 10.10.11.1 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key of Site A CE XDR tunnel.

e. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.89.0/24. Please note that the selected IP subnets are the ones that needs to be accessed from the other sites.

The following screenshot shows the tunnel configuration of Site B Crystal Eye XDR:

In the ‘Site BCrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Tunnel Tab > click the ‘Add+’ button and enter the tunnel configuration entries shown in the screenshot below > click the Add button crystal-eye-xdr-wireguard-mesh-vpn2

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site B’ details.

b. Enter the ‘Site BWireGuard interface IP address i.e 10.10.11.2 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key of Site B Crystal Eye XDR tunnel.

e. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.90.0/24. Please note that the selected IP subnets are the ones that needs to be accessed from the other sites.

The following screenshot shows the tunnel configuration of Site C Crystal Eye XDR:

In the ‘Site CCrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Tunnel Tab > click the ‘Add+’ button and enter the tunnel configuration entries shown in the screenshot below > click the Add button crystal-eye-xdr-wireguard-mesh-vpn3

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site C’ details.

b. Enter the ‘Site CWireGuard interface IP address i.e 10.10.11.3 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key of ‘Site CCrystal Eye XDR tunnel.

e. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.88.0/24. Please note that the selected IP subnets are the ones that needs to be accessed from the other sites.


Create a ‘Site B’ Peer in the ‘Site A’ Crystal Eye XDR

In the ‘Site ACrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Peer Tab > click the ‘Add+’ button and enter the peer configuration entries shown in the screenshot below > click the Add button crystal-eye-xdr-wireguard-mesh-vpn4

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site B’ details.

b. Enter the ‘Site BWireGuard interface IP address i.e 10.10.11.2 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key.

e. Enter the WAN IP of ‘Site B’ Crystal Eye XDR in the Remote Server text box. In our case, the WAN IP address of ‘Site B’ is 122.168.147.5

f. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.90.0/24. Please note that the selected IP subnets are the ones that need’s to be accessed from the other sites.

Create a ‘Site C’ Peer in the ‘Site A’ Crystal Eye XDR

In the ‘Site ACrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Peer Tab > click the ‘Add+’ button and enter the peer configuration entries shown in the screenshot below > click the Add button crystal-eye-xdr-wireguard-mesh-vpn5

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site C’ details.

b. Enter the ‘Site CWireGuard interface IP address i.e 10.10.11.3 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key.

e. Enter the WAN IP of ‘Site C’ Crystal Eye XDR in the Remote Server text box. In our case, the WAN IP address of ‘Site B’ is 122.168.197.9

f. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.88.0/24. Please note that the selected IP subnets are the ones that need’s to be accessed from the other sites.

Key exchange between ‘Site B’ tunnel (in ‘Site B’ Crystal Eye XDR) and ‘Site B’ Peer (in ‘Site A’ Crystal Eye XDR)

Log into ‘Site B’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGurad app > click the Tunnel Tab > click the Edit button next to the ‘Site B’ in the Actions column > You will see the Update Tunnel page, click the Show button, and copy the Public Key. crystal-eye-xdr-wireguard-mesh-vpn6

Now Log in to ‘Site A’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > click the Peers tab > you will see the Update Peer page, click the Edit button next to the ‘Site B Peer’ in the Actions column > You will see the Update Peer page, paste the Public Key copied in the previous step (from Site B tunnel configuration) to the Public Key text box. crystal-eye-xdr-wireguard-mesh-vpn7

Key exchange between Site C tunnel (in ‘Site C’ Crystal Eye XDR) and ‘Site C’ Peer (in ‘Site A’ Crystal Eye XDR)

Log into ‘Site C’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGurad app > click the Tunnel Tab > click the Edit button next to the ‘Site C’ in the Actions column > You will see the Update Tunnel page, click the Show button, and copy the Public Key. crystal-eye-xdr-wireguard-mesh-vpn9

Now Log in to ‘Site A’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > click the Peers tab > you will see the Update Peer page, click the Edit button next to the ‘Site C Peer’ in the Actions column > You will see the Update Peer page, paste the Public Key copied in the previous step (from Site C tunnel configuration) to the Public Key text box. crystal-eye-xdr-wireguard-mesh-vpn10


Create a ‘Site A’ Peer in the ‘Site B’ Crystal Eye XDR

In the ‘Site BCrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Peer Tab > click the ‘Add+’ button and enter the peer configuration entries shown in the screenshot below > click the Add button. crystal-eye-xdr-wireguard-mesh-vpn12

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site A’ details.

b. Enter the ‘Site AWireGuard interface IP address i.e 10.10.11.1 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key.

e. Enter the WAN IP of ‘Site A’ Crystal Eye XDR in the Remote Server text box. In our case, the WAN IP address of ‘Site A’ is 122.168.198.8

f. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.89.0/24. Please note that the selected IP subnets are the ones that need’s to be accessed from the other sites.

Create a ‘Site C’ Peer in the ‘Site B’ Crystal Eye XDR

In the ‘Site BCrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Peer Tab > click the ‘Add+’ button and enter the peer configuration entries shown in the screenshot below > click the Add button. crystal-eye-xdr-wireguard-mesh-vpn13

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site C’ details.

b. Enter the ‘Site CWireGuard interface IP address i.e 10.10.11.3 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key.

e. Enter the WAN IP of ‘Site C’ Crystal Eye XDR in the Remote Server text box. In our case, the WAN IP address of ‘Site C’ is 122.168.197.9

f. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.88.0/24. Please note that the selected IP subnets are the ones that need’s to be accessed from the other sites.

Key exchange between ‘Site A’ tunnel (in Site A Crystal Eye XDR) and ‘Site A’ Peer (in Site B Crystal Eye XDR)

Log into ‘Site A’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGurad app > click the Tunnel Tab > click the Edit button next to the ‘Site A’ in the Actions column > You will see the Update Tunnel page, click the Show button, and copy the Public Key. crystal-eye-xdr-wireguard-mesh-vpn14

Now Login to ‘Site B’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > click the Peers tab > you will see the Update Peer page, click the Edit button next to the ‘Site A Peer’ in the Actions column > You will see the Update Peer page, paste the Public Key copied in the previous step (from Site A tunnel configuration) to the Public Key text box.
crystal-eye-xdr-wireguard-mesh-vpn15

Key exchange between ‘Site C’ tunnel (in ‘Site C’ Crystal Eye XDR) and ‘Site C’ Peer (in ‘Site B’ Crystal Eye XDR)

Log into ‘Site C’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGurad app > click the Tunnel Tab > click the Edit button next to the ‘Site C’ in the Actions column > You will see the Update Tunnel page, click the Show button, and copy the Public Key. crystal-eye-xdr-wireguard-mesh-vpn16

Now Login to ‘Site B’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > click the Peers tab > you will see the Update Peer page, click the Edit button next to the ‘Site C Peer’ in the Actions column > You will see the Update Peer page, paste the Public Key copied in the previous step (from Site C tunnel configuration) to the Public Key text box.
crystal-eye-xdr-wireguard-mesh-vpn17


Create a ‘Site A’ Peer in the ‘Site C’ Crystal Eye XDR

In the ‘Site CCrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Peer Tab > click the ‘Add+’ button and enter the peer configuration entries shown in the screenshot below > click the Add button crystal-eye-xdr-wireguard-mesh-vpn18

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site A’ details.

b. Enter the ‘Site AWireGuard interface IP address i.e 10.10.11.1 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key.

e. Enter the WAN IP of ‘Site A’ Crystal Eye XDR in the Remote Server text box. In our case, the WAN IP address of ‘Site A’ is 122.168.198.8

f. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.89.0/24. Please note that the selected IP subnets are the ones that needs to be accessed from the other sites.

Create a ‘Site B’ Peer in the ‘Site C’ Crystal Eye XDR

In the ‘Site CCrystal Eye XDR, go to Network Control > SD-WAN > WireGuard > click the Peer Tab > click the ‘Add+’ button and enter the peer configuration entries shown in the screenshot below > click the Add button crystal-eye-xdr-wireguard-mesh-vpn19

In the above screenshot,

a. Enter the Name and Description in the text box with the ‘Site B’ details.

b. Enter the ‘Site BWireGuard interface IP address i.e 10.10.11.2 in the Address text box.

c. Select the required Netmask. In our case, we have selected 255.255.255.0/24 as the netmask.

d. Click the Generate Key button to generate the Public Key.

e. Enter the WAN IP of ‘Site B’ Crystal Eye XDR in the Remote Server text box. In our case, the WAN IP address of ‘Site B’ is 122.168.147.5

f. Select the Allowed Local IP address/Subnet from the dropdown. As per our scenario we have selected 10.10.90.0/24. Please note that the selected IP subnets are the ones that needs to be accessed from the other sites.

Key exchange between ‘Site A’ tunnel (in ‘Site A’ Crystal Eye XDR) and ‘Site A’ Peer (in ‘Site C’ Crystal Eye XDR)

Log into ‘Site A’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGurad app > click the Tunnel Tab > click the Edit button next to the ‘Site A’ in the Actions column > You will see the Update Tunnel page, click the Show button, and copy the Public Key. crystal-eye-xdr-wireguard-mesh-vpn20

Now Log in to ‘Site C’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > click the Peers tab > you will see the Update Peer page, click the Edit button next to the ‘Site A Peer’ in the Actions column > You will see the Update Peer page, paste the Public Key copied in the previous step (from Site A tunnel configuration) to the Public Key text box. crystal-eye-xdr-wireguard-mesh-vpn21

Key exchange between ‘Site B’ tunnel (in ‘Site B’ Crystal Eye XDR) and ‘Site B’ Peer (in ‘Site C’ Crystal Eye XDR)

Log into ‘Site B’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGurad app > click the Tunnel Tab > click the Edit button next to the ‘Site B’ in the Actions column > You will see the Update Tunnel page, click the Show button, and copy the Public Key. crystal-eye-xdr-wireguard-mesh-vpn22

Now Log in to ‘Site C’ Crystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > click the Peers tab > you will see the Update Peer page, click the Edit button next to the ‘Site B Peer’ in the Actions column > You will see the Update Peer page, paste the Public Key copied in the previous step (from Site B tunnel configuration) to the Public Key text box. crystal-eye-xdr-wireguard-mesh-vpn23


Login to ‘Site ACrystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > select the Tunnels tab > Select ‘Site B’ & ‘Site C’ from the Peers dropdown.


Login to ‘Site BCrystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > select the Tunnels tab > Select ‘Site A’ & ‘Site C’ from the Peers dropdown.


Login to ‘Site CCrystal Eye XDR > Go to Network Control > SD-WAN > WireGuard app > select the Tunnels tab > Select ‘Site A’ & ‘Site B’ from the Peers dropdown.


The client to site configurations of WireGuard allows remote users to connect to resources in the Crystal Eye XDR network. This feature can be configured on PCs and laptops running on Microsoft Windows, Linux and MAC OS. Android phones are also compatible with the WireGuard VPN.

Note: As a default feature, the WG VPN service works on split-tunnel mode. However, explicit peer configurations can be done to run the WG VPN service on full tunnel mode.

Let’s learn how remote users can be connected with resources on the CE XDR network with the help of WireGuard end-client application.

In the scenario depicted in the diagram below, a remote worker’s PC is connected to the Crystal Eye XDR network with the help of a WireGuard VPN tunnel. The WireGuard IP address assigned to the remote device is 172.16.1.2 and this device has access to the internal server (IP address: 10.40.1.125) in the CE XDR network.

crystal-eye-xdr-split-tunnel-wireguard1

Perform the following steps to establish a WireGuard tunnel between a remote workers computer to the CE XDR network:


Step 1: Go to Network Control > SD-WAN > WireGuard > select the Peers tab > click the Add button. crystal-eye-xdr-split-tunnel-wireguard24

Step 2: You will now see the Add Peer page. Enter the name of the WireGuard VPN user in the Name textbox. crystal-eye-xdr-split-tunnel-wireguard25

Step 3: Enter the IP address of the remote device. Please note that the self-assigned IP address of the remote device must be of the same range as that of the self-assigned WireGuard interface address.
crystal-eye-xdr-split-tunnel-wireguard26

Step 4: Click the Generate Key button. crystal-eye-xdr-split-tunnel-wireguard27

Step 5: As per our scenario, enter the subnet of the zone of the internal servers which needs to be allowed for explicit access in the Allowed Remote IP/Subnets. In our case the Allowed Remote subnet is 10.40.1.0/24. crystal-eye-xdr-split-tunnel-wireguard28

Step 6: Delete the Remote Port, keep the text box empty and then click the Add button. crystal-eye-xdr-split-tunnel-wireguard29


Step 7: Select the Tunnels tab and click the Add button. crystal-eye-xdr-split-tunnel-wireguard30

Step 8: You will see the Add Tunnel page. Assign a Name and Description. crystal-eye-xdr-split-tunnel-wireguard31

Step 9: Enter the Wireguard interface IP address in the Address textbox. As per our scenario the WireGuard interface IP assigned by us is 172.16.1.1 crystal-eye-xdr-split-tunnel-wireguard32

Step 10: Click the Generate Key button. crystal-eye-xdr-split-tunnel-wireguard33

Step 11: Select the user created in the peers configuration from the Peers dropdown. In our case we had created the user ‘alam’ (refer to step 1 to step 6). Click the Add button. crystal-eye-xdr-split-tunnel-wireguard34

Step 12: You will now be directed to the Configured Tunnels dashboard. Now click the Peers tab and download the user configuration file and import it to WireGuard end-point application. crystal-eye-xdr-split-tunnel-wireguard35

Review the steps to import the WireGuard user configuration file to the WireGuard end-point app below. Please note that these steps vary according to the operating system running on the PC or laptop.

Installing WireGuard End-client application on PCs running on Microsoft Windows OS and importing WireGuard Configuration File.

Step 1: Double click the WireGuard setup file after downloading it. crystal-eye-xdr-split-tunnel-wireguard2

Step 2: You will see the WireGuard Setup Wizard. Click the Next button. crystal-eye-xdr-split-tunnel-wireguard3

Step 3: You will see the Select Installation Folder pop-up. Click the Next button. crystal-eye-xdr-split-tunnel-wireguard4

Step 4: Click the Next button and confirm installation. crystal-eye-xdr-split-tunnel-wireguard5

Note: WireGuard end-point app will get installed automatically and you will see the app icon in your desktop. crystal-eye-xdr-split-tunnel-wireguard6

Step 5: Download the WireGuard Config file from the CE XDR from the Peers section. Click the download icon. crystal-eye-xdr-split-tunnel-wireguard18

Step 6: Double-click the WireGuard icon on the Desktop. You will see Red Piranha’s WireGuard end-point application user interface. Click the Browse button, import the WireGuard configuration file (downloaded in the previous step) and then click the Connect button. crystal-eye-xdr-split-tunnel-wireguard19

Note: Once the WireGuard Connection has been established you will see the Startup complete log message on the WireGuard end-point application user interface. crystal-eye-xdr-split-tunnel-wireguard20

Installing WireGuard End-client application on PCs running on Linux and importing WireGuard Configuration File:

Step 1: Open command line and execute the command below to check whether WireGuard app is installed in your PC. crystal-eye-xdr-split-tunnel-wireguard7

Note: After executing the above command you’ll see the below output (if WireGuard is not installed). Enter ‘Y’ to install (highlighted in the screenshot below). crystal-eye-xdr-split-tunnel-wireguard8

Step 3: Download the WireGuard Config file from the CE XDR from the Peers section. Click the download icon. crystal-eye-xdr-split-tunnel-wireguard9

Note: Refer to the Peer Configurations below to generate the WireGuard Config File.

Step 4: After downloading the WireGuard config file, rename it to wg0.conf crystal-eye-xdr-split-tunnel-wireguard10

Step 5: Execute the following command to copy config file on WireGuard directory. crystal-eye-xdr-split-tunnel-wireguard11

Step 6: Execute the following command to verify whether the WireGuard config file is copied to wireguard directory. crystal-eye-xdr-split-tunnel-wireguard12

Step 7: Execute the following command to establish the WireGuard Tunnel. crystal-eye-xdr-split-tunnel-wireguard13

Step 8: Verify successful connection status in the Crystal Eye XDR WireGuard app Tunnel Configuration section. crystal-eye-xdr-split-tunnel-wireguard14

Step 9: Verify successful connection on the Linux PC by executing the following command. crystal-eye-xdr-split-tunnel-wireguard15

Installing WireGuard End-client application on PCs running on Mac OS and importing WireGuard Configuration File:

Step 1: Download WireGurad end-client application from app store.

Step 2: After installation, you will see the WireGuard end-point application user interface. Click the Import button. crystal-eye-xdr-split-tunnel-wireguard16

Step 3: Download the WireGuard Config file from the CE XDR from the Peers section. Click the download icon. crystal-eye-xdr-split-tunnel-wireguard17

Step 4: Browse and import the WireGuard configuration file. crystal-eye-xdr-split-tunnel-wireguard21

Step 5: You will see a pop-up with the message, “Would you like to Add VPN Configuration”. Click the Allow button. crystal-eye-xdr-split-tunnel-wireguard22

Step 6: Click the Activate button to establish the WireGuard tunnel. crystal-eye-xdr-split-tunnel-wireguard23


WireGuard can be configured for the remote users to run on full tunnel mode. This essentially means that all the VPN traffic will be routed through the wireguard tunnel.

To configure WireGuard for remote users on full tunnel mode, pursue all the steps mentioned in WireGuard for Remote Users (Split Tunnel Mode). Please note that you will have to alter step 5 in WireGuard for Remote Users (Split Tunnel Mode) and only mention 0.0.0.0/0 in the Allowed subnet/IP textbox.
