Antivirus


The Antivirus application plays an active role in examining and evaluating files as they transit in real time. One of the most important functionalities of the anti-virus application is that it has certain limitations that can be set to protect systems from Distributed Denial of Service (DDoS) attacks.

The application has an elaborated Settings section that can be used to Block Encrypted Files, set limit for Maximum Files in Zip Files, set limit for Maximum File Size in Zip Files, set limit for Maximum Recursion in Zip Files and assign an Antivirus update schedule. The antivirus engine is also used by other applications of Crystal Eye such as Content Filter and Anti-malware File Scanner.

Note: Crystal Eye’s Content Filter application will stop functioning if the user disables Virus Scan from the General Settings in Content Filter application.


Left-hand Navigation Panel > Security Configuration > Gateway Security > Antivirus


There might be instances when Crystal Eye’s Antivirus might not be able to detect virus in some files including zip files if they are encrypted or password protected. On the contrary, it’s a well known fact that virus writers across the world use such techniques of encrypting and password protecting malicious files to evade detection by anti-virus. Blocking all encrypted files in such cases can be a good defensive strategy.

How to Block Antivirus Application Settings to Enable/Disable Block Encrypted Files?

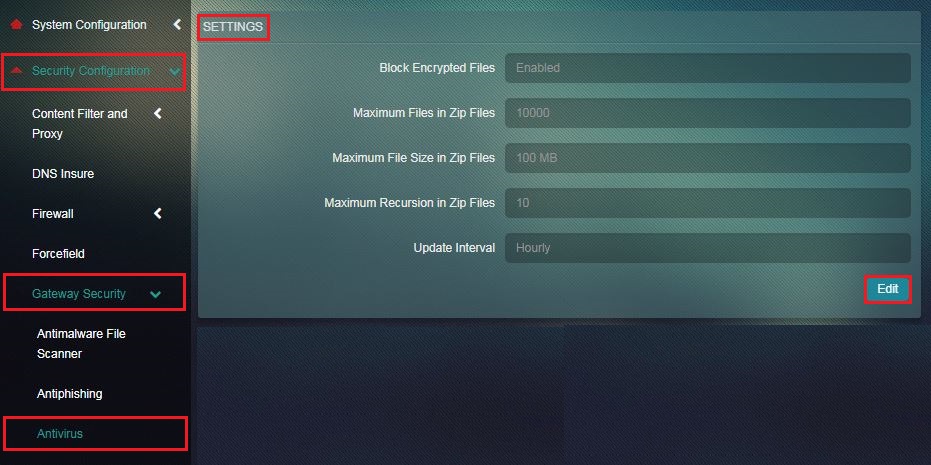

Step 1: In the Antivirus Application page, click the Edit button in the Settings section.

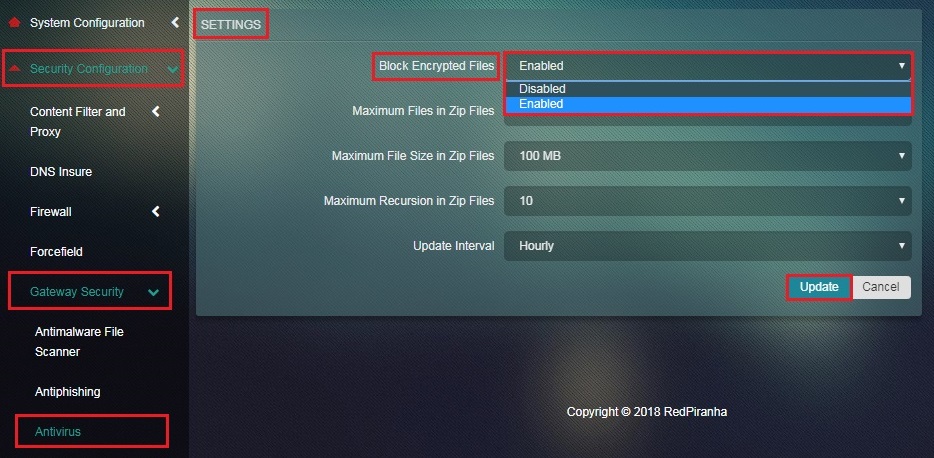

Step 2: You will now see the Settings section. Select Enable or Disable from the Block Encrypted Files drop and click the Update button.


Potential DDoS attack could emerge due to downloading of excessive number of files from zip files. It is recommended to set limit for receiving maximum number of files in zip files to protect against such attacks.

How to Set a Limit for Receiving Maximum Files in Zip Files?

Step 1: In the Antivirus application page, click the Edit button in the Settings section. Step 2: You will now see the Settings section. Select the desired limit for receiving maximum files in zip files from the Maximum Files in Zip Files drop down and click the Update button.

Note: The desired limit for receiving maximum files in zip files can be 100, 200, 300, 400, 500, 600, 700, 800, 900, 1000, 2000, 3000, 4000, 5000, 10000, 15000 & 20000


A majority of viruses are transported through small sized files. Thus, setting up a limit for maximum file size in zip files could be helpful in preserving system resources while scanning especially when the file sizes received are more than the set limits.

How to Set a Limit for Maximum File Size in Zip Files?

Step 1: In the Antivirus Application page, click the Edit button in the Settings section. Step 2: You will now see the Settings section. Select the desired limit for receiving maximum files in zip files from the Maximum Files in Zip Files dropdown and click the Update button.


A recursion in zip files would essentially mean having layers of zip files inside other zip files and so on. Such a pattern is usually used to create DDoS attacks. Therefore, it is recommended to keep this setting to default 10 recursions to protect systems from DDoS attacks.

How to Set Limits for Maximum Recursion in Zip Files?

Step 1: In the Antivirus application page, click the Edit button in the Settings section. Step 2: You will now see the Settings section. Select desired limit for maximum recursion in zip files in the Maximum Recursion in Zip Files dropdown and click the Update button.

Note: The desired limit for maximum recursion in zip files can be 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25


The Crystal Eye administrator has the leverage to update AV signatures as per a pre-defined schedule. These updates can be done Daily, Twice a Day, Every Two Hours, and Hourly.

How to Schedule Antivirus App Updates?

Step 1: In the Antivirus Application page, click the Edit button in the Settings section. Step 2: You will now see the Settings section. Select the desired update schedule from the Update Interval dropdown and click the Update button.

Note: The desired Antivirus App Update Interval can be Daily, Twice a Day, Every Two Hours or Hourly.
